How to Build your own EV Training Kit

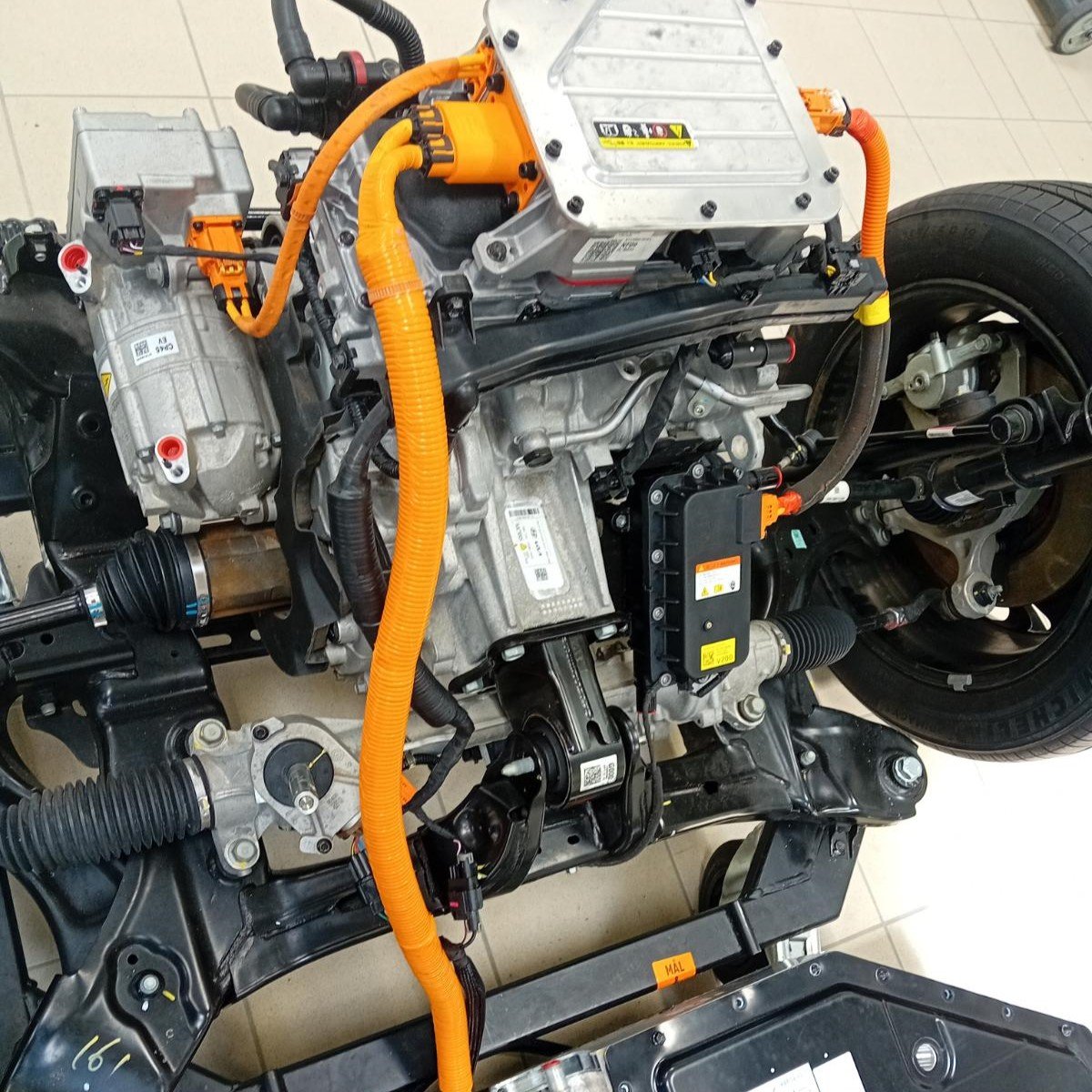

To get started, just bring what you have available, whether it's an EV, a skateboard, or an existing training rig.

Enhance your training rig with a TVS-IOT to simulate realistic HV system behaviors.

The OEM-KIT lets you connect several HV components to simulate real-life fault scenarios.

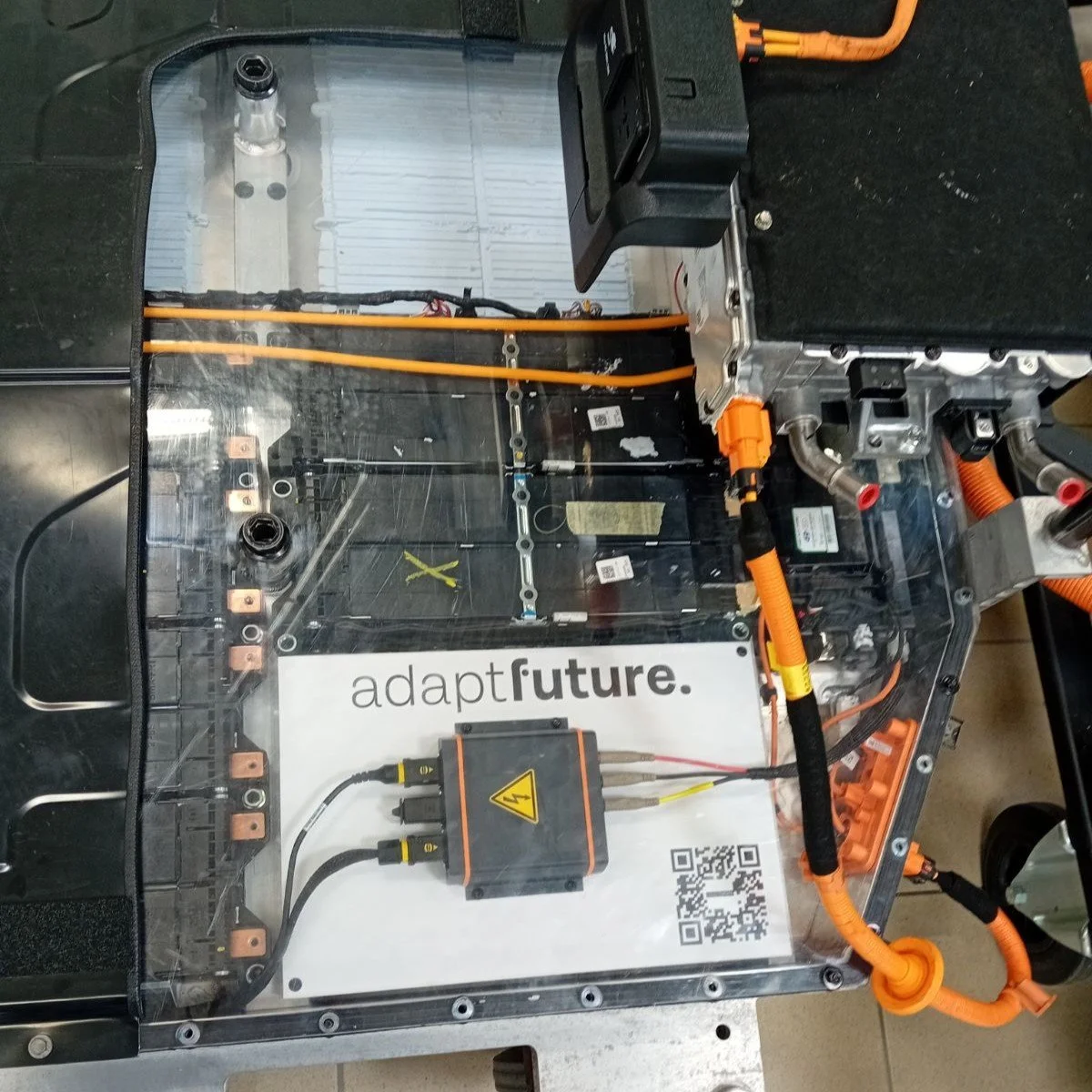

Remove cells/modules from the HV battery pack to connect TVS-IOT. Isolate internally the components that you will introduce the faults.

  • TVS-IOT offers a realistic simulation of high-voltage systems that reflect the voltage levels found in electrified vehicles, ranging from 60V to 1000V. The integrated control unit allows students to safely practice working with high-voltage systems, fostering respect for these components and minimizing the risk of accidents.

  • TVS-IOT is controlled through a dedicated app that allows instructors to create and manage diverse fault scenarios. These safe, hands-on exercises are tailored to build students' safe work practices and troubleshooting abilities. By simulating real-world malfunctions, these tasks offer invaluable experience in handling challenges that may arise in the field. The app's flexibility empowers any organization to create new scenarios with simple code modifications.

  • Risks of working on high-voltage vehicles

    Safety in working with high-voltage vehicles

    Working with high-voltage systems

    Practicing the removal of the service connector

    Deactivating hybrid and high-voltage systems

    Troubleshooting ground leaks and other types of faults

    Testing the high-voltage system for safety when work is completed

    Incident management, securing electric vehicles in case of accidents

    Identifying various voltages present in high-voltage vehicles

    And so much more. Only the imagination sets the limits.

After connecting all components, power on the TVS-IOT and verify that the readings match your expectations.

Conceal any loose wires so they remain not visible during training sessions. Your training rig is now set and ready!

The offer

Now you can access all of this through a convenient subscription service. For a small monthly fee, you can elevate your training to new heights.
